YGJ-100 mobile shears, suitable for metal recovery processing plant, scrap car dismantling field, smelting and casting industry, all kinds of shapes of steel and metal structure parts for cold shear, processing into qualified furnace charge.
1. Hydraulic drive, safe and reliable, easy to operate.
2. The working blade length is optional and the shearing force is different, which is suitable for users with different sizes and requirements.
Note: can be customized according to customer needs
| The project name | unit | The performance parameters |
|---|---|---|
Work weight | kg | 8900 |
Motor power | kw | 45 |
The main pump | / | nakagawa |
Rated flow | L/min | 130 |
Pressure of work | Mpa | 31 |
The main valve | / | nakagawa |
Rotary motor | / | Korea advanced seiko |
Walking motor | / | Han Guodou mountain |
Rotary speed | rpm | 12 |
Walking speed | km/h | 5 |
Maximum climb | 。 | 28 |
hose | / | The horse to |
Cable reel | / | Automatic and |
Arm length | mm | 3300 |
The second arm length | mm | 1800 |
| The project name | unit | The performance parameters |
|---|---|---|
Working range of scissors | ||
Maximum lifting height | mm | 930 |
Maximum opening size | mm | 400 |
The length of the edge | mm | 450 |
Pressure of work | Mpa | 31 |
Maximum shear round steel | mm | 50 |
Maximum sheared plate | mm | 35 |
Maximum sheared plate | Channel steel | 200 |

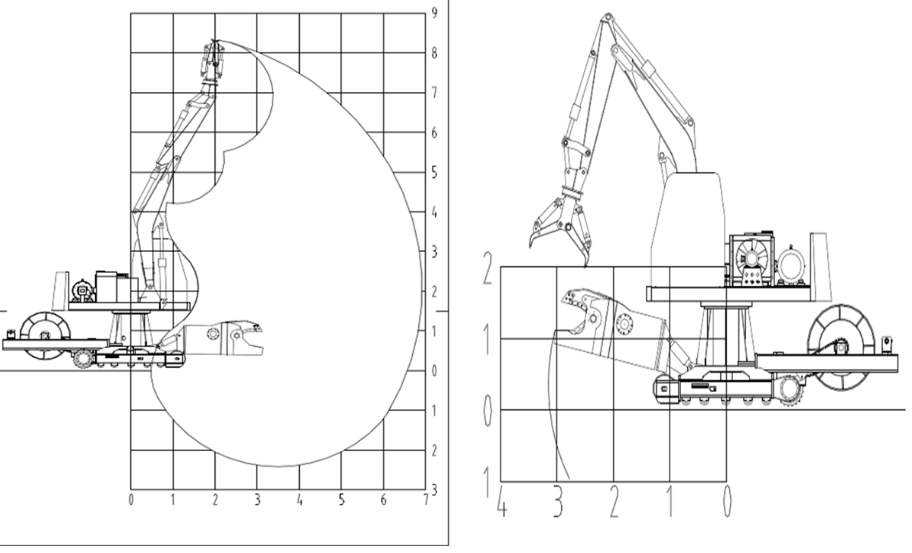

Working range of working device | ||
Maximum snatch height | mm | 8160 |
Radius at maximum snatch height | mm | 2109 |
Maximum unloading height | mm | 5510 |
Radius at maximum unloading height | mm | 2205 |
Maximum snatch radius | mm | 6918 |
Maximum ground snatch radius | mm | 6570 |
