YGSC300 crawler dual-power car disassembly machine main features:
1.1 powerful and flexible dismantling hydraulic shear
1.1.1 the original imported motor and high strength imported alloy steel material, with super crushing force and shear force.
1.1.2 the cutting edge is designed with clamping groove, which is convenient to clamp irregular materials.
1.1.3 the design of the double-fold line tool makes it easy to bite and tear the material without slipping when cutting the material.
1.1.4 the original blade interchange design can be used on all four sides of the blade. Greatly improve the use efficiency and life of the blade
1.1.5 the long trapezoidal design is adopted for the disassembly hydraulic shear, which can be operated in a narrow space.
1.1.6 the tool head can rotate freely 360 degrees and grasp the disintegrating target accurately and quickly.
1.2 clamp pressure arm with rich functions
1.2.1 the maximum opening and closing range of the same grade can be up to 3300 mm, and the elevation is 2138 mm.
1.2.2 in addition to providing a strong grip to ensure the shear work, the fixture adopts a bowl-shaped arc design, which can easily disassemble all kinds of tires;
1.2.3 equipped with four alloy steel cutters, greatly improving the engine crushing efficiency;
1.2.4 for off-road vehicles, minibuses, buses, buses and other vehicles with car beams, the unique design of the front fixed jaw greatly improves the disassembly efficiency during disassembly;
1.2.5 tooth extraction at the front, the operator has a better field of vision and is more convenient to operate in case of torsional disintegration;
1.2.6 all the accessories of the clamping arm are connected by bolts, with good expansion performance and secondary development performance, and more convenient maintenance.
1.3 strong power system
The use of domestic famous brand engine - yuchai power, powerful power, environmental economy, low fuel consumption, low noise, in any operating environment can play an excellent work efficiency and excellent performance.
| The project name | unit | The performance parameters |
|---|---|---|
Work weight | kg | 29200 |
Engine power | kw | 194 |
Motor power | kw | 160 |
The main pump | / | KAWASAKI |
Rated flow | L/min | 2x280+30 |
Pressure of work | Mpa | 31.5 |
The main valve | / | PARKER |
Rotary motor | / | SUNJIN |
Walking motor | / | DOOSAN |
Rotary speed | rpm | 12 |
Maximum traction | Kn | 210 |
Walking speed | km/h | 5 |
Maximum climb | 。 | 26 |
Arm length | mm | 5700 |
The second arm length | mm | 2900 |

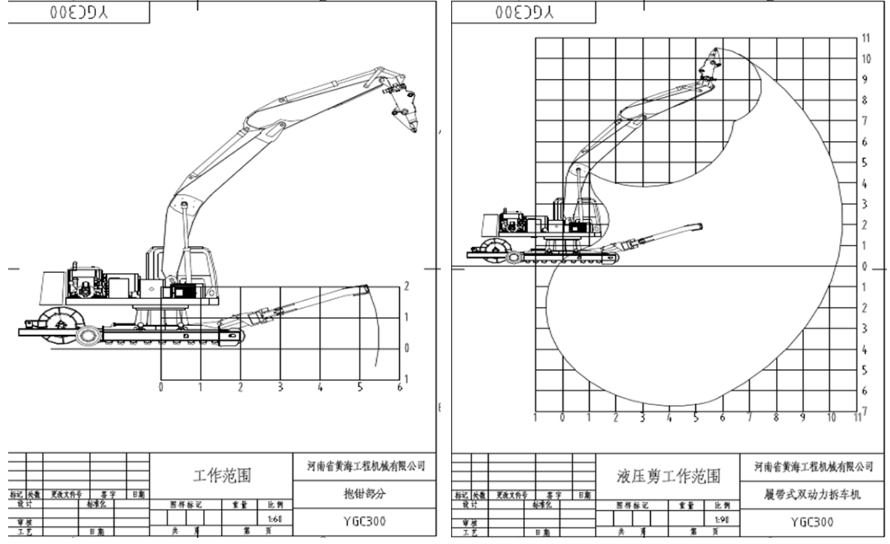

| The project name | unit | The performance parameters |
|---|---|---|
| Working parameters of clamping arm | ||
Maximum opening size | mm | 3300 |
Maximum elevation | mm | 2138 |
Maximum depth of descent | mm | 480 |
Working parameters of hydraulic shearing | ||
Maximum opening size | mm | 600 |
Snip in depth | mm | 412 |
Main shear length | mm | 240 |
Maximum shear thickness of plate | mm | 35 |
Shear diameter of rebar | mm | 50 |
