Grasping steel scrap handling machine is a device, by transformation of the gripper and the working device can achieve a variety of work functions, also known as grasping feeder , widely used in steel plants, smelters, ports, docks and scrap transshipment Special engineering machinery in the industry, equipped with different grippers (such as plum grabs, shell grabs, log grabs, billet grabs, hydraulic shears, hydraulic pliers, etc.) can meet different customers' different conditions for scrap steel, ore, coal , Bulk fertilizer, yellow sand loading and unloading needs.
● Economical and reliable
Single pump constant power, dual pump cross power control, stable engine output;
Negative flow pump control mode, good economy;
Hydraulic oil radiator and engine water cooler plug-in arrangement, compact and efficient;
Hydraulic hoses and seals are imported products with high reliability.
● Reasonable design
Both the boom and the stick are hydraulically locked and have good impact resistance. Both pumps converge, the stick regenerates, and can be combined with multiple movements to ensure stable operation.
Two speed selections for walking speed to achieve two speeds to meet different working conditions;
The upper arm brake of the walking and turning mechanism is hydraulically opened and has good safety;
Flexible configuration according to different grade requirements of users;
Power system, hydraulic system and working device can be freely and flexibly configured according to user needs;
The working device adopts a "straight-moving arm and a bucket stick" structure, and is equipped with an electric suction cup and a lifting driver's cab;
● Efficient and environmentally friendly
Simple operation, convenient maintenance and safe and reliable performance;
Environmental protection and energy saving, low noise and long service life;
The far-infrared remote control system can realize long-distance operation; the crawler-type walking device has low ground pressure, stable walking and flexible steering.
| project name | unit | Performance parameter |
|---|---|---|
Working weight | kg | 18600 |
Engine power | kw | 92 |
Motor Power | kw | 55 |
Main pump | / | KAWASAKI |
Limited Data | L / min | 2x120 + 30 |
Working pressure | Mpa | 31.5 |
Main valve | / | PARKER |
turn around | / | SUNJIN |
walk | / | DOOSAN |
Rotating speed | rpm | 0-12 |
main traction force | Kn | 76 |
Walking speed | km / h | 0-4 |
Maximum grade | . | 25 |
Boom length | mm | 4700 |
Arm length | mm | 2500 |
Grab volume | m 3 | 0.5 four petals |
| project name | unit | Performance parameter |
|---|---|---|

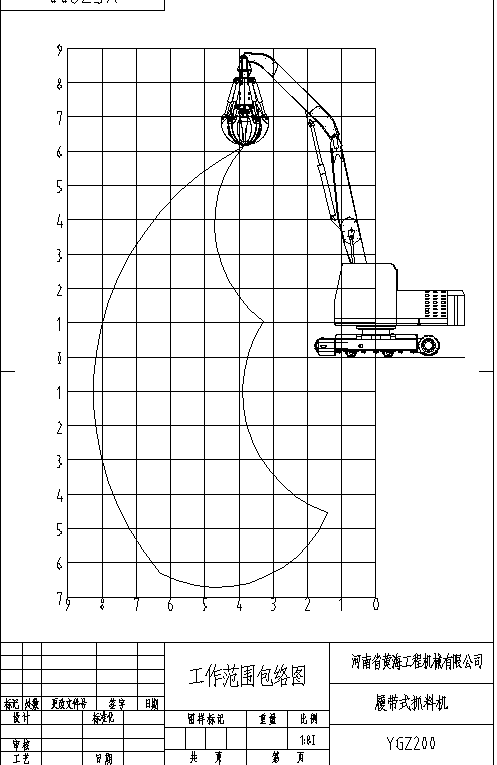

Gripping height | mm | 9720 |
Maximum gripping radius | mm | 9450 |
Maximum grabbing depth | mm | 6490 |
